OEM SPD, Single Phase N-PE 40kA Surge Protector

FOB Reference Price:Get Latest Price
$10.00 - $19.00 / Pieces | 10 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 3 Negotiable
Samples - $19.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CUAJE
Model Number:
OBV1-C40/1+NPE
Product name:
Single Phase N-PE 40kA Surge Protector
Poles:
1+NPE
Material:
Spark gap, Nylon,PBT
Imax:
40kA
In:
20kA
Warranty:
2 Years
Certificate:
CE/ISO9001/SGS
Standard:
IEC61643-1
Package:
Carton
OEM:
Yes
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Cartons
Port
Shanghai, Ningbo
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 3 To be negotiated

Product Description





  OBV1-C40 series Surge Protection (Surge Protection Device) is suitable for TN-S,TN-C-S,TT,IT etc. power supply system of AC 50/60Hz, 380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, its designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal, its also could be replaced for the module when has operating voltage.

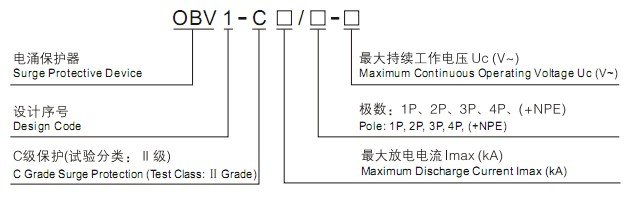

Model and Meaning:

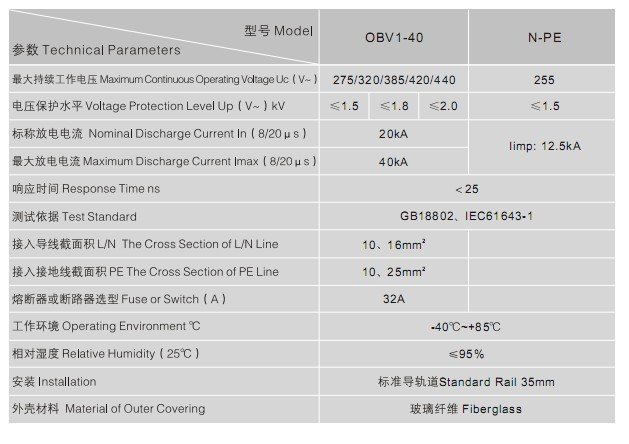

Technical parameters





Dimension



Certifications



Company Information

WenZhou Chuangjie Lightning Protection Electrical Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.



Since 1999, CUAJE® continues to be intensely dedicated to one area - the design, development and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.



Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. CUAJE® Surge Protection's  attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs.
