China manufacturer of RJ 45 lightning protector

FOB Reference Price:Get Latest Price
US $8-13 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CUAJE
Model Number:
OBVX-RJ45
Name:
rj45 lightning protector
normnal discharge current in(8/20u):
3KA
impulse protective voltage Ur(1kv/us):
less than 600V
Packing:
Hard Box
Warranty:
2 Years
Material:
Aluminum alloy
Color:
Black, Silver
Weight:
83g
payment:
T/T Western Union paypal
Products Status:
Stock, Used
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Cartons
Port
Shanghai, Ning bo or any port your reuquire
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(day) 2 To be negotiated



Product Description



OBVX-RJ45 SPDs are specially designed to avoid failures in data transfer between equipments inside the same network. They protect the input of the electronic circuits of the network cards against harms due to transient currents.

OBVX-RJ45 is a protector with RJ45 input and output connectors, with a withstanding current up to 3kA for line. It is available with different voltages and data transmission speed. It’s designed to protect individually every single equipment connected to the computers network.

Reference

OBVX-RJ45-100-6V

OBVX-RJ45-100-30V

OBVX-RJ45-1000-6V

OBVX-RJ45-1000-POE

OBVX-RJ45-1000-CAT.6

Maximum speed transfer:  Un

100Mbit/s

100Mbit/s

1000Mbit/s

1000Mbit/s

1000Mbit/s

Nominal voltage : Un

5Vdc

24Vdc

5Vdc

48Vdc

24Vdc

Maximum continuous operating voltage: Uc

6Vdc

30Vdc

6Vdc

65Vdc

30Vdc

Nominal discharge current for line C2 10kV(1,2/50μs) / 5kA(8/20μs): In (C2)

3kA

Protection level at In (8/20μs):

30V

40V

30V

100V

150V

Maximum  working current:

300mA

Series resistance:

15Ω

Response time:

< 10ns

Working temperature:

-40+80

SPD location:

Indoor

Type of connection:

Series (two ports)

Pin Outs

1,2,3,6

1-2,3-6,4-5,7-8

Input / Output connector:

RJ45 / RJ45 shielded

Certificated tests according to: IEC 61643-21, EN 61643-21

  network surge protector OBVX-RJ45 EN.jpg

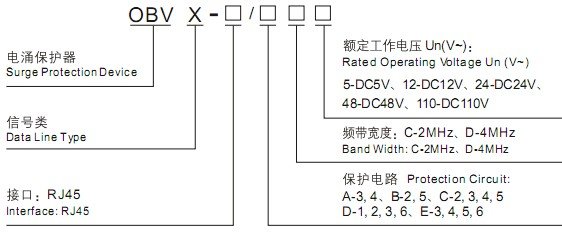

Model and Meaning-OBVX-RJ45.jpg



Technical parameters



Main Technical Parameters:



Dimension






Packaging & Shipping

packing: standard export carton

shipping: 3 days after receiving the payment



Certifications


Company Information

WenZhou Chuangjie Lightning Protection Electrical Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.



Since 1999, CUAJE® continues to be intensely dedicated to one area - the design, development and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.



Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. CUAJE® Surge Protection's  attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs.



FAQ



Q: Can I get some samples?

A: Yes, Sample orders welcomed.



Q: Can I use my own Logo or design on goods?

A: Yes, Customized logo and design on mass production are available.



Q:What is the delivery time?

A: 3 days for samples, 7-15 days for mass production.



Q: What is the payment term?

A: T/T, L/C at sight, West union , Paypal, etc



Q: Can I trust you?

A: Absolutely YES, We are “Alibaba” verified supplier for many years.



Q: May I visit your factory?

A:Sure, welcome any time. We can also pick you up at airport or station.
