hotsale DC surge protector, DC lightning protection, Solar lightning system

FOB Reference Price:Get Latest Price
US $18-30 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
cuaje
Model Number:
OBV5-C40/3P 1000VDC
Name:
DC surge protector
Network voltage:
1000VDC
in:
20ka
imax:
40ka
Certificate:
CE certification &ISO9001& SGS
Material:
PBT/Nylon/VDR
Lead Time:
1-3 Working Days
Size:
54*90*62mm
Weight:
454g
Warranty:
2 Years
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
carton
Port
China ports
Lead Time :
Shipped in 2 days after payment

Product Description



Product Description

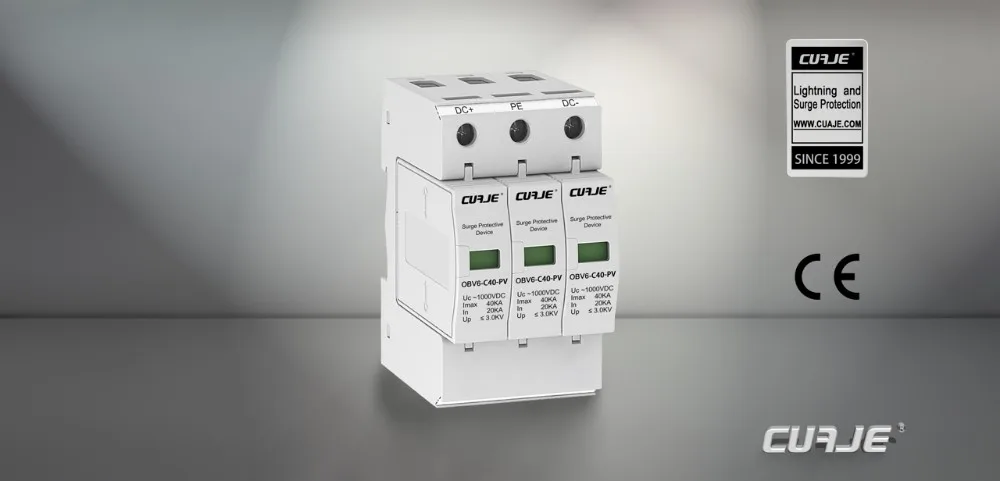

Surge Protection for Solar Photovoltaic (PV) System
The OBV6 series Surge Protection are designed to protect against lightning surge voltages in photovoltaic power supply networks. These units must be installed in parallel on the DC networks to be protected and provide common and differential modes protection. The OBV6-B+C40 series is available for the main operating voltages in photovoltaic: 1000 Vdc.

The use of OBV6-B+C40 series Surge Protection is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long. The electrical diagram of the OBV6-B+C40 series is based on high energy MOVs equipped with specific thermal disconnectors and related failure indicators. The OBV6B+C40 series is made with plug-in modules to allow a fast and easy maintenance in case of failure (disconnection from the DC network).
OBV5-C40 3P with remote.jpg


 OBV6-C40-PV-1000V-3P EN.jpgOBV6-C40-PV-1000V-3P LT EN.jpg



Technical parameters



Model                      OBV5-C40-PV series

Network voltage

500Vdc

600Vdc

800Vdc

900Vdc

1000 Vdc

Max. operating voltage Uc

530Vdc

630Vdc

840Vdc

950Vdc

1060 Vdc

Nominal discharge current ln

20kA

Max. discharge current lmax

40kA

Protection level (at In) Up

1.8kV

2.5kV

2.6kV

2.8kV

3.0kV

Disconnector

Thermal Disconnector

Internal

Mechanical characteristics

Dimensions

See diagram

Connection

by screw terminals: 4-25 mm2

Disconnection indicator

1 mechanical indicator by pole

Mounting

symmetrical rail 35 mm

Operating temperature

-40/+85°C

Protection class

IP20

Standards compliance

NF EN 61643-11 France

Parafoudre Basse Tension

- Essais Classe II

IEC 61643-1 International

Low Voltage SPD - Test Class II

EN 61643-11 Europe

Parafoudre Basse Tension

- Essais Classe II

Dimension



Packaging & Shipping

packing: standard export carton

shipping: 3 days after receiving the payment



Certifications


Company Information

WenZhou Chuangjie Lightning Protection Electrical Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.



Since 1999, CUAJE® continues to be intensely dedicated to one area - the design, development and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.



Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. CUAJE® Surge Protection's  attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs.
