Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CUAJE
  • Model Number: OBVX-RJ11
  • Product Name: Telephone line protector
  • Rate operating voltage Un: DC110 DC48 DC24
  • norminal discharge current in(8/20u): 3KA
  • Band width: 2MHz
  • interface: RJ11
  • Response time: less than 1 ns
  • material of outer covering: shield Aluminum
  • protective mode: full protective mode
  • Weight: 68g
  • Warranty: 2 Years

Packaging & Delivery

Packaging Details Cartons
Delivery Time Shipped in 2 days after payment
Product Description

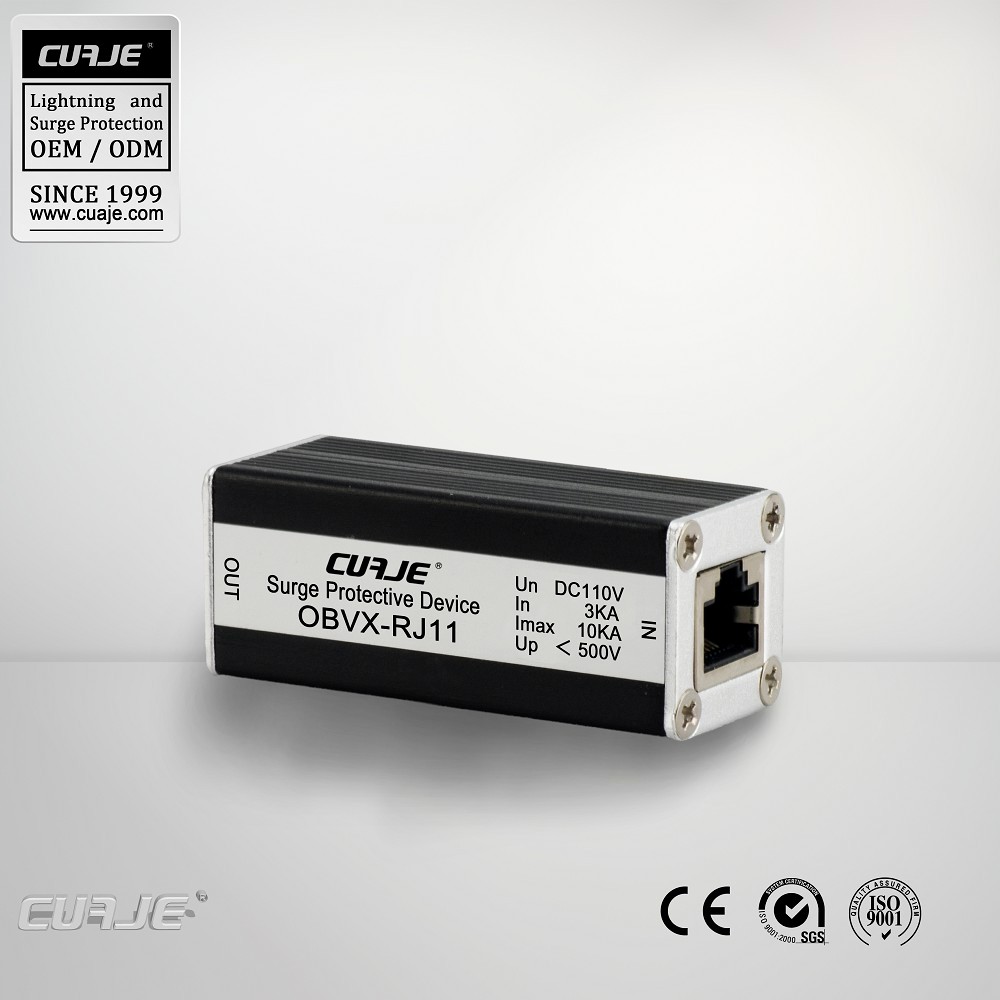

OBVX-RJ11 is a protector with RJ11 input and output connectors, able to hold up nominal discharge currents of 3kA for each line.

Both common and differential protection recommended for this type of lines.

Protection for telephone lines and also for the digital and analogical equipment connected to these lines (fax, modem, etc).

In normal conditions stays inactive, without affecting the line working and without producing any leakage.

Discharge takes place in an internal encapsulated element, with no external flash.

Very fast response

Reference

OBVX-RJ11-150

OBVX-RJ11-110

OBVX-RJ11-48

OBVX-RJ11-24

Nominal voltage : Un

150Vdc

110Vdc

48Vdc

24Vdc

Maximum continuous operating voltage: Uc

170Vdc

150Vdc

60Vdc

30Vdc

Nominal discharge current for line C2 10kV(1,2/50μs) / 5kA(8/20μs): In (C2)

3kA

Protection level at In (8/20μs):

330V

300V

200V

120V

Maximum  working current:

300mA



Series resistance:

15Ω



Response time:

< 10ns



Working temperature:

-40+80



SPD location:

Indoor



Type of connection:

Series (two ports)



Pin Outs

3,4



Input / Output connector:

RJ11 / RJ11



Certificated tests according to: IEC 61643-21, EN 61643-21













Packaging & Shipping

packing: standard export carton

shipping: 3 days after receiving the payment

Company Information

WenZhou Chuangjie Lightning Protection Electrical Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.



Since 1999, CUAJE® continues to be intensely dedicated to one area - the design, development and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.



Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. CUAJE® Surge Protection's  attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs.
