CCTV signal surge protector CCTV vido lightning protector

FOB Reference Price:Get Latest Price
US $20-30 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CUAJE
Model Number:
OBX2
Product name:
CCTV signal surge protector
Material:
Aluminum Alloyed
Warranty:
2 Years
Certificate:
ISO9001
OEM:
YES
Color:
Black
Package:
Carton
Nomimal Discharge Current In:
5kA
Connection:
RJ45,BNC
Shipping term:
DHL
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
CARTONS
Port
SAHNGHAI/ningbo
Lead Time :
3 DAYS

Product Description



Characteristics

 Security Camera Surge Protector

 Power, Data and Video in a Single Unit

 Hybrid GDT and Diode Technology

 24, 120, 230V Configurations

 Compact Aluminium Housing

 Options for 1 or 2 Pair or Cat.5



Model and Meaning

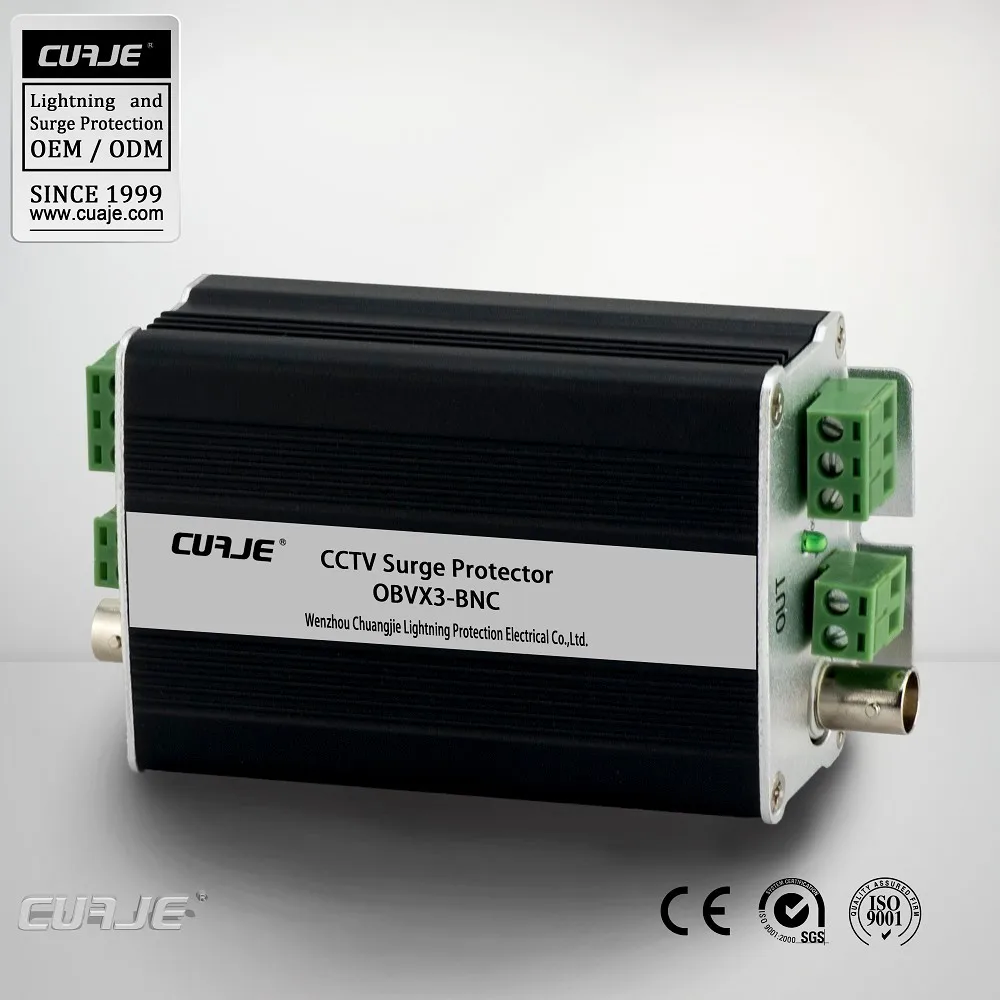

OBVX-3-BNC   (Video / Power / Data)

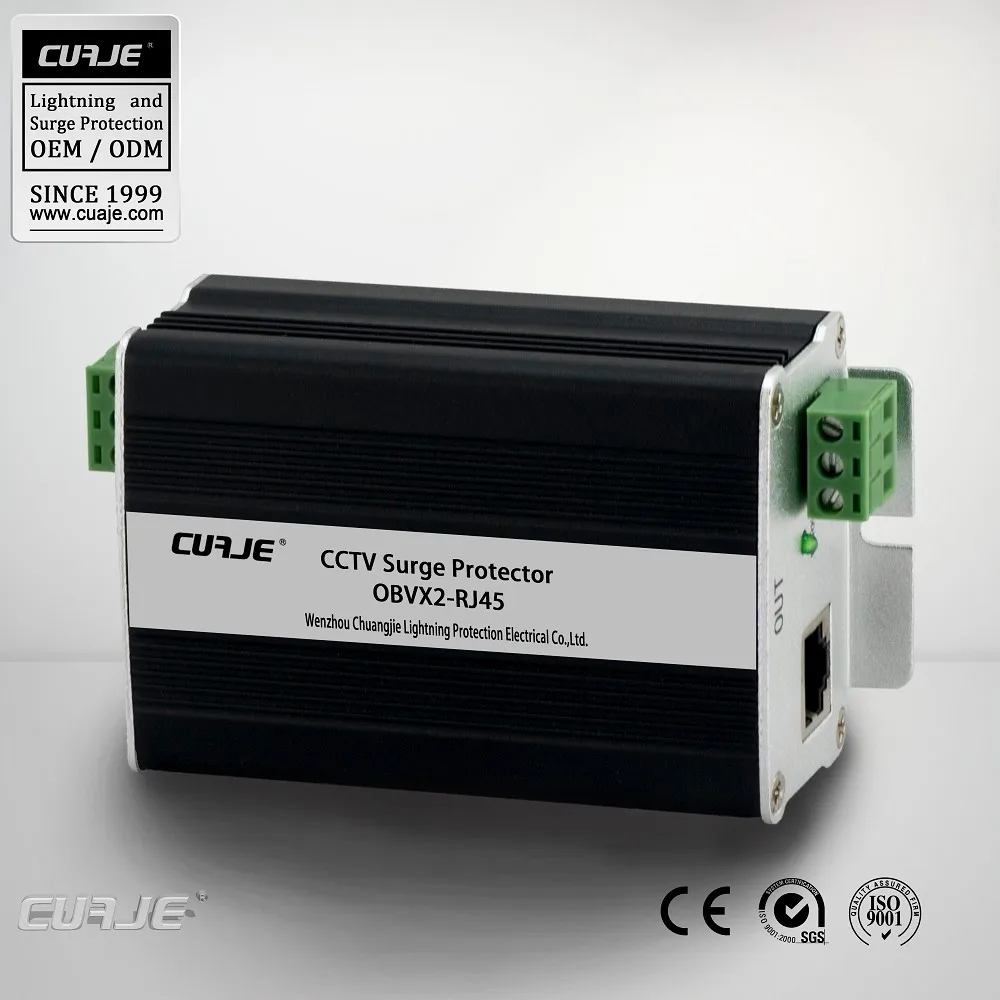

OBVX-2-RJ45   (Video / Power)

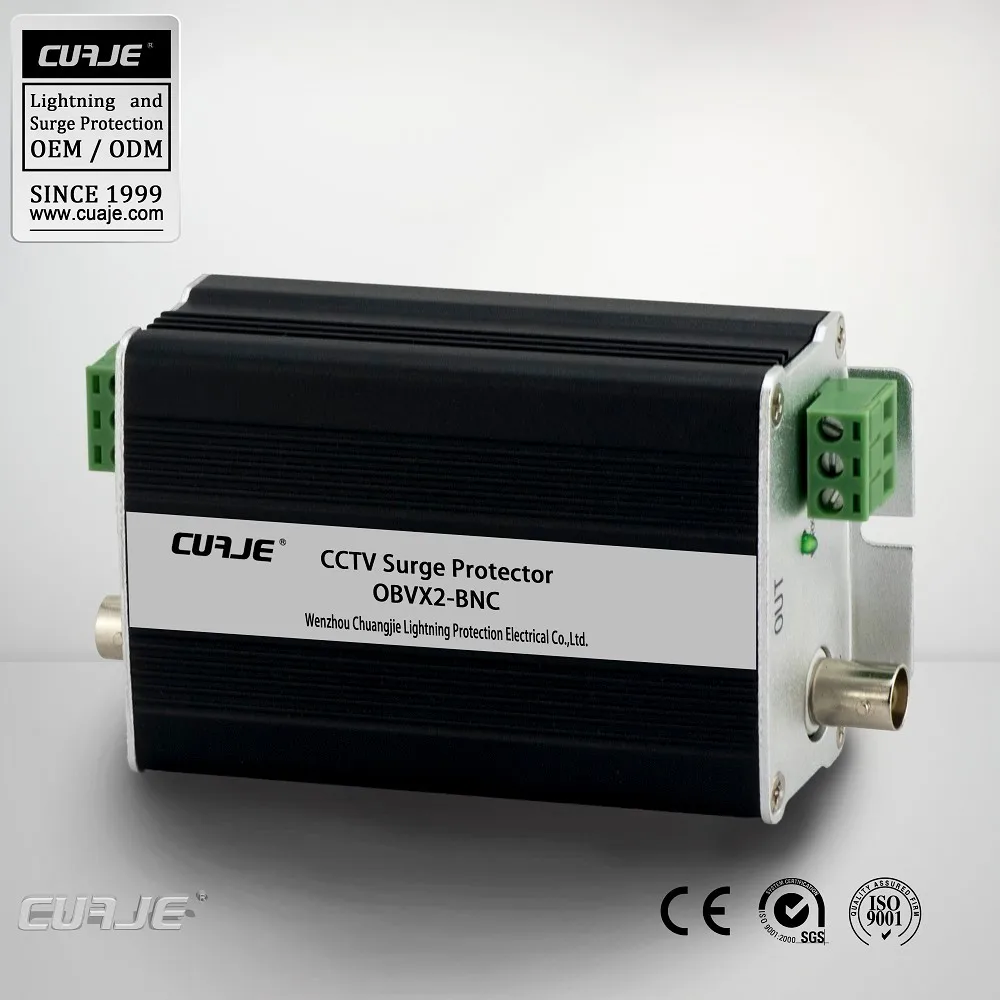

OBVX-2-BNC    (Video / Power)

Model:    OBVX-3-BNC / OBVX-2-RJ45 / OBVX-2-BNC

Power

Nominal Voltage Un

24Vdc

120Vac

230Vac

Maximum Voltage Uc

30Vdc

150Vac

255Vac

Line Current IL

5A

Nomimal Discharge Current In (8/20µs) kA

5kA

Maximum Discharge Current Imax (8/20µs)

10kA

Protection Level Up

0.3kV

0.8kV

1.2kV

Connection

Screw terminal : maximum 2.5 mm2

Failure Mode

Power failure and green led off

Data

Maximum Voltage Uc

8Vdc

Nomimal Discharge Current In (8/20µs) kA

5kA

Maximum Discharge Current Imax (8/20µs)

10kA

Protection Level Up

20V

Connection

Screw terminal : maximum 1.5 mm2

Failure Mode

Short-circuit status (transmission fault)

Video (BNC / RJ45)

Maximum Voltage Uc

6Vdc

Nomimal Discharge Current In (8/20µs) kA

5kA

Maximum Discharge Current Imax (8/20µs)

10kA

Protection Level Up

20V

Connection

BNC female coaxial connector / RJ45

Failure Mode

Short-circuit status (transmission fault)




Packaging & Shipping

packing: standard export carton

shipping: 3 days after receiving the payment


Certifications



Company Information

WenZhou Chuangjie Lightning Protection Electrical Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.



Since 1999, CUAJE® continues to be intensely dedicated to one area - the design, development and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.



Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. CUAJE® Surge Protection's  attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs.
