building lightning arester

FOB Reference Price:Get Latest Price
US $25-40 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CUAJE
Model Number:
OBV1-C40 4P +FS
Type:
Mini
Poles:
4P(+FS)
Imax:
40KA
In:
20KA
Material:
PBT/Nylon/VDR
Certificate:
CE/ISO9001/SGS
Lead Time:
1-3 Working Days
Function:
Lightning Protection for Low Voltage
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Cartons
Port
Shanghai, Ningbo
Lead Time :
3 days

Product Description



   OBV1-C40 series Surge Protection (Surge Protection Device) is suitable for TN-S,TN-C-S,TT,IT etc. power supply system of AC 50/60Hz, 380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, its designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal, its also could be replaced for the module when has operating voltage.

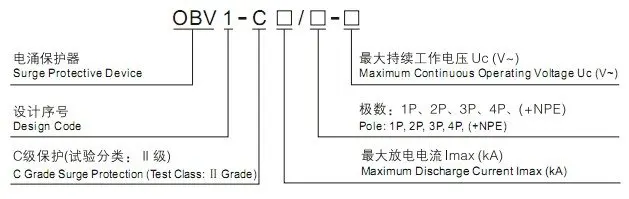

Model and Meaning:Model and Meaning-OBV1-C.jpg



Technical parameters



Technical Parameters-OBV1-C.jpg

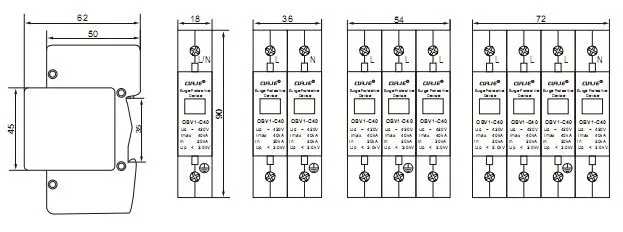

Dimension
