power surge protection device

FOB Reference Price:Get Latest Price
US $5-20 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CUAJE
Model Number:
OBV1-D20
Product name:
power surge protection device
Poles:
1P, 2P, 3P, 4P(+NPE)
Imax:
20kA
In:
10kA
Warranty:
2 Years
Certificate:
CE/ISO9001/SGS
Material:
MOV/Nlyon/PBT
Package:
Carton
OEM:
YES
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Cartons
Port
Shanghai, NIngbo
Lead Time :
3 days
Product Description



OBV1-D series Surge Protector is suitable for TN-S, TN-C-S, TT, IT etc. power supply system of AC 50/60Hz, 380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, it's designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal.



Model and Meaning:Model and Meaning-OBV1-D.jpg

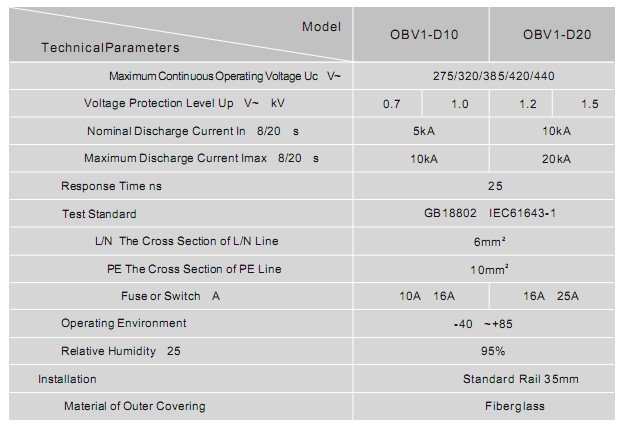

Main Technical Parameters:Technical Parameters-OBV1-D.jpg

Packaging & Shipping

packing: standard export carton

shipping: 3 days after receiving the payment

Company Information

WenZhou Chuangjie Lightning Protection Electrical Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.



Since 1999, CUAJE® continues to be intensely dedicated to one area - the design, development and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.



Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. CUAJE® Surge Protection's  attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs.



FAQ

Q: Can I get some samples?

A: Yes, Sample orders welcomed.



Q: Can I use my own Logo or design on goods?

A: Yes, Customized logo and design on mass production are available.



Q:What is the delivery time?

A: 3 days for samples, 7-15 days for mass production.



Q: What is the payment term?

A: T/T, L/C at sight, West union , Paypal, etc



Q: Can I trust you?

A: Absolutely YES, We are “Alibaba” verified supplier for many years.



Q: May I visit your factory?

A:Sure, welcome any time. We can also pick you up at airport or station.



contact information

 Maggie huang

Tel:0086-577-62786680     Fax:0086-577-62730590

Mob.:0086-13567772755   Whatsup:13567772755

Skype:maggie11329  QQ:157884317

Http://www.cuaje.com

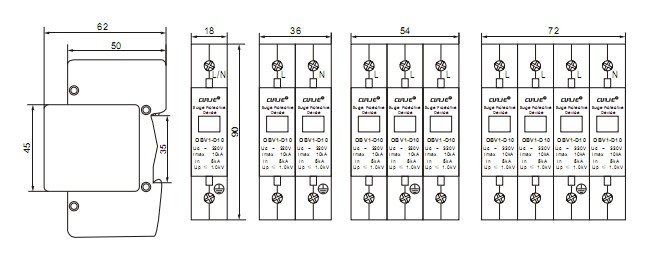

Demension:
