Industrial Power Surge Protector, lightning protection device, low voltage surge arrester

FOB Reference Price:Get Latest Price
US $9-45 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CUAJE
Model Number:
OBV2-65/4P
Product name:
Industrial Power Surge Protector
Type:
2
Poles:
1P, 2P, 3P, 4P(+NPE)
Imax:
65KA
In:
30KA
Uc:
420V
Material:
MOV
Certificate:
CE/ISO9001/SGS
Warranty:
2 Years
Weight:
475g
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Cartons
Port
Shanghai, Ningbo
Lead Time :
3days

Description low voltage surge arrester

OBV2 series Surge Protection Device is suitable for TT, IT, TN-S, TN-C-S etc. power supply system of AC 50/60Hz, <380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, it's designed according to IEC61643-1 ,GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, white means normal, red means abnormal, it's also could be replaced for the module when has operating voltage.

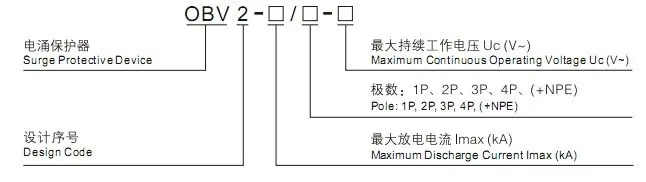

Model and Meaning:Model and Meaning-OBV2.jpg

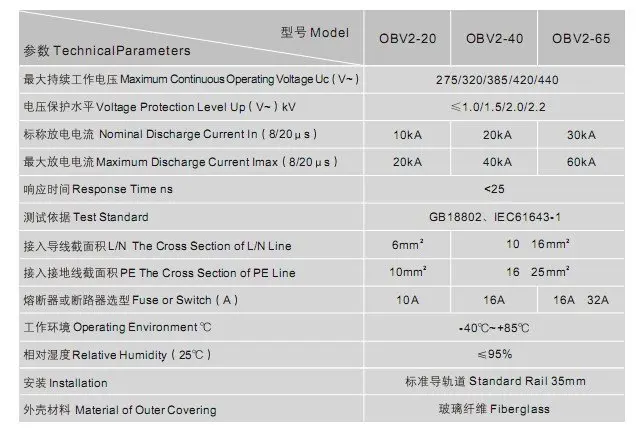

Main Technical Parameters:Technical Parameters-OBV2.jpg

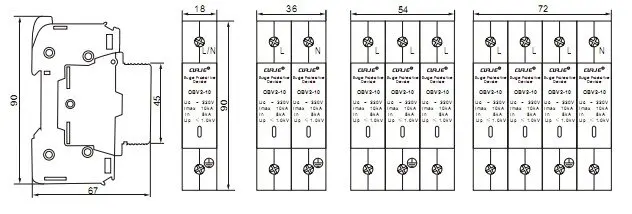

Demension:


Packaging & Shipping

packing: standard export carton

shipping: 3 days after receiving the payment



Certifications


Company Information

WenZhou Chuangjie Lightning Protection Electrical Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.



Since 1999, CUAJE® continues to be intensely dedicated to one area - the design, development and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.



Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. CUAJE® Surge Protection's  attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs.
