40kA SPD low voltage surge protector transient surge protector

FOB Reference Price:Get Latest Price
US $15-20 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
CUAJE
Model Number:
OBV1-C40
Name:
SPD low voltage surge protector
Uc:
440V
Imax:
40KA
In:
20KA
Test standard:
GB18802,IEC61643-1
Size:
4P-72*90*62mm
Weight:
4p-454g
Material:
MOV/Nylon/PBT
Warranty:
2 Years
Certificate:
CE/ISO9001/SGS
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Cartons
Port
Shanghai, Ningbo
Lead Time :
3 days

Product Description



OBV1-C series Surge Protection (Surge Protection Device) is suitable for TN-S,TN-C-S,TT,IT etc. power supply system of AC 50/60Hz, <380V, installed on the joint of LPZ1 or LPZ2 and LPZ3, its designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal, its also could be replaced for the module when has operating voltage.



Product Features

1. Inside over-current and over-heat protection, temperature control open circuit.
2. Module design, convenient installation, could be replaced online.
3. Smallness leak current, response quickly, less residual voltage.
4. gnal indication device, green(normal), red(abnormal).
5. Technology, highly energy, clearance discharge pole(N-PE)

Main Technical Parameters

Surge Protection Device OBV1-C40
Maximum Continuous Operating Voltage Uc(V~)
275V
320V
385V
440V
Voltage Protection Level Up(V~)kV
1.2kV
1.5 kV
1.8 kV
2.0 kV
Nominal Discharge Current In(8/20µs)kA
20kA
Maximum Discharge Current Imax(8/20µs)kA
40kA
Response Time ns
<25 ns
Test Standard
IEC61643.1, GB18802.1
The Cross Section of L/N Line (mm2)
25-35 (mm2)
The Cross Section of PE Line (mm2)
25-35 (mm2)
Fuse or Switch(A)
25A~32A
Operating Environment (centidegree)
-40~+85
Relative Humidity (25 centidegree)
<95%
Installation
Standard Rail 35mm
Material of Outer Covering
Fiberglass PC

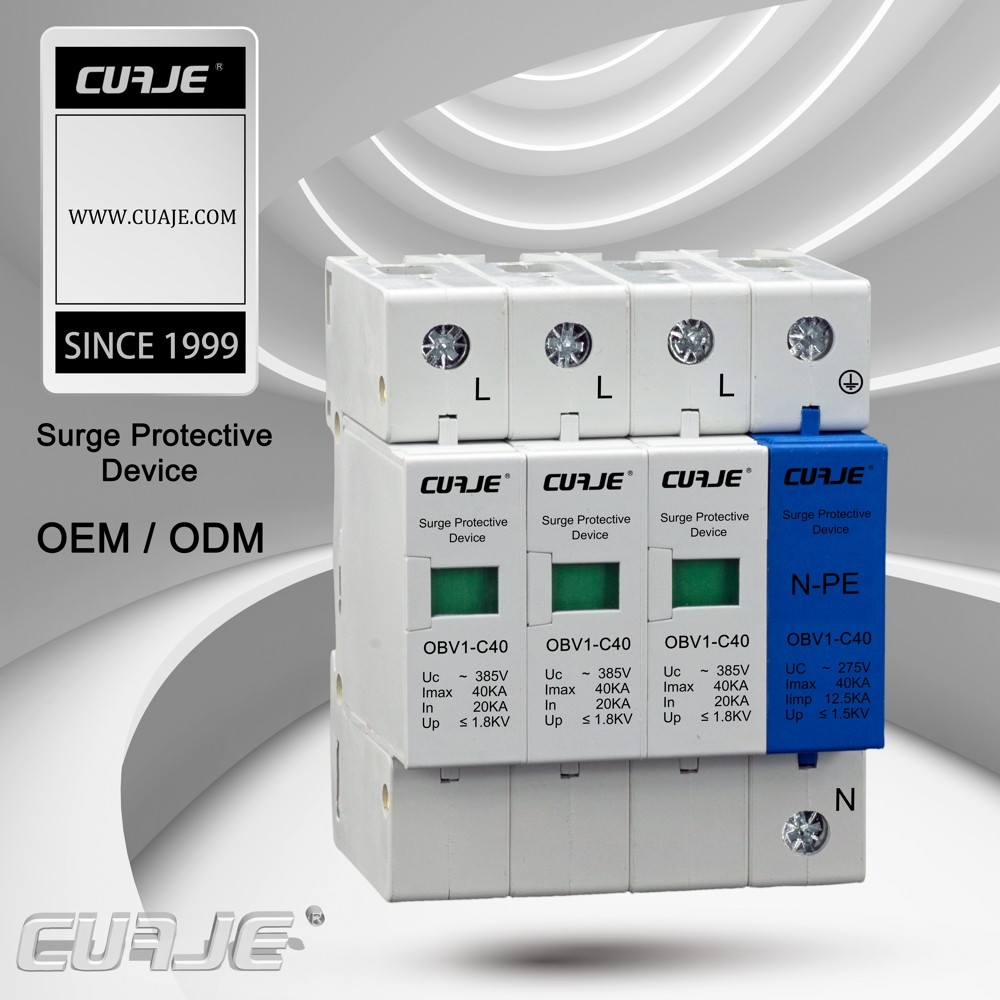

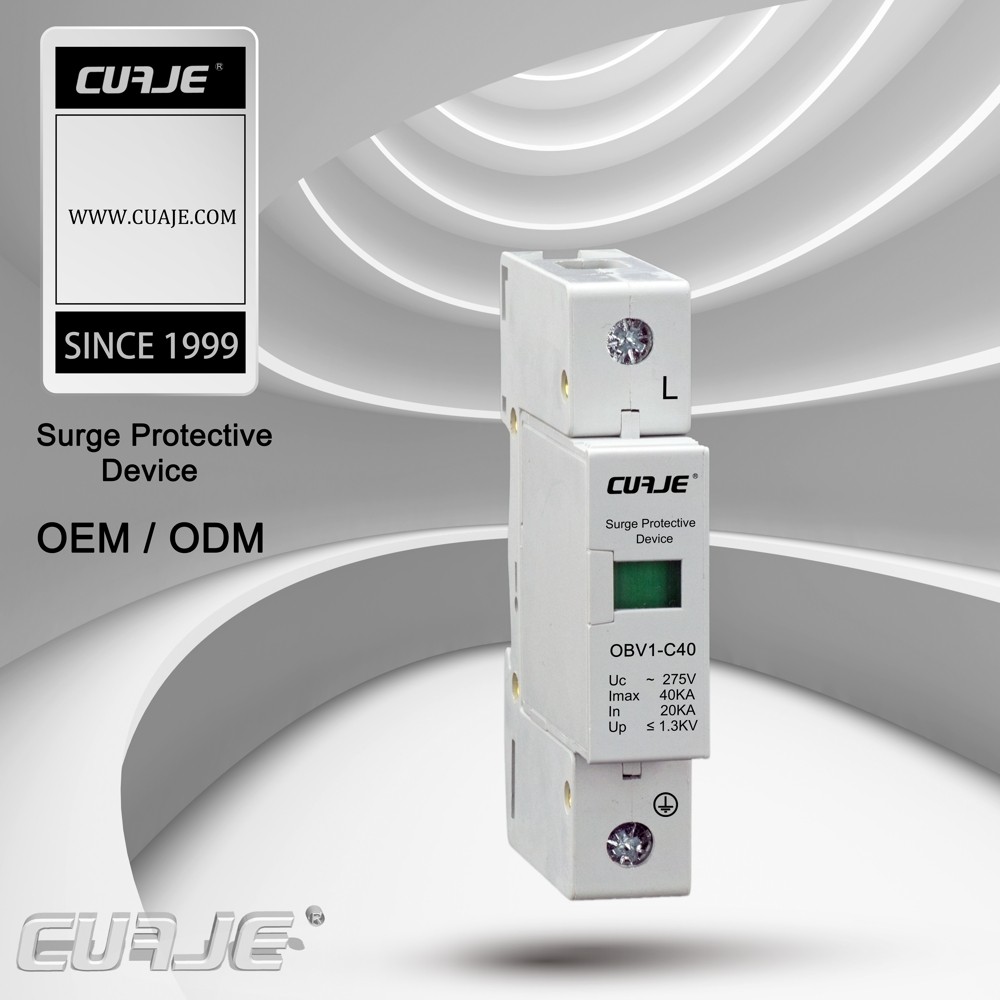

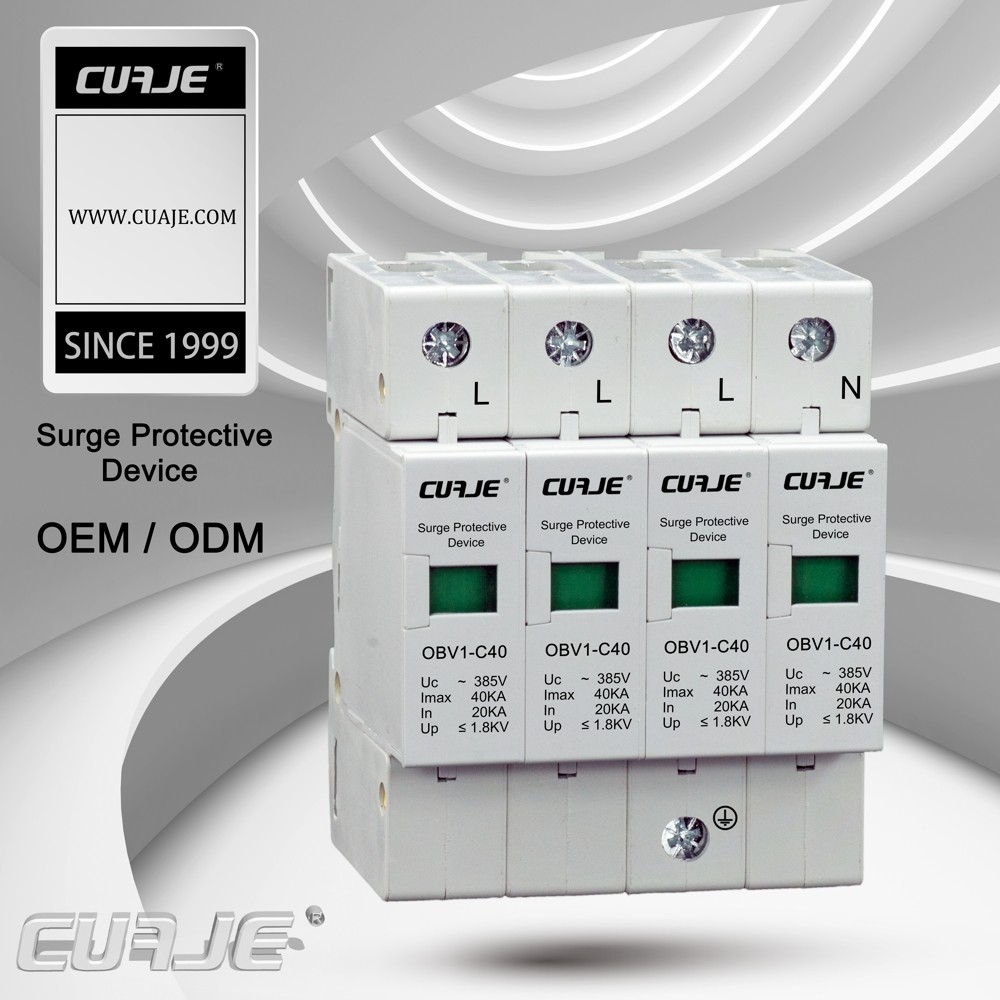

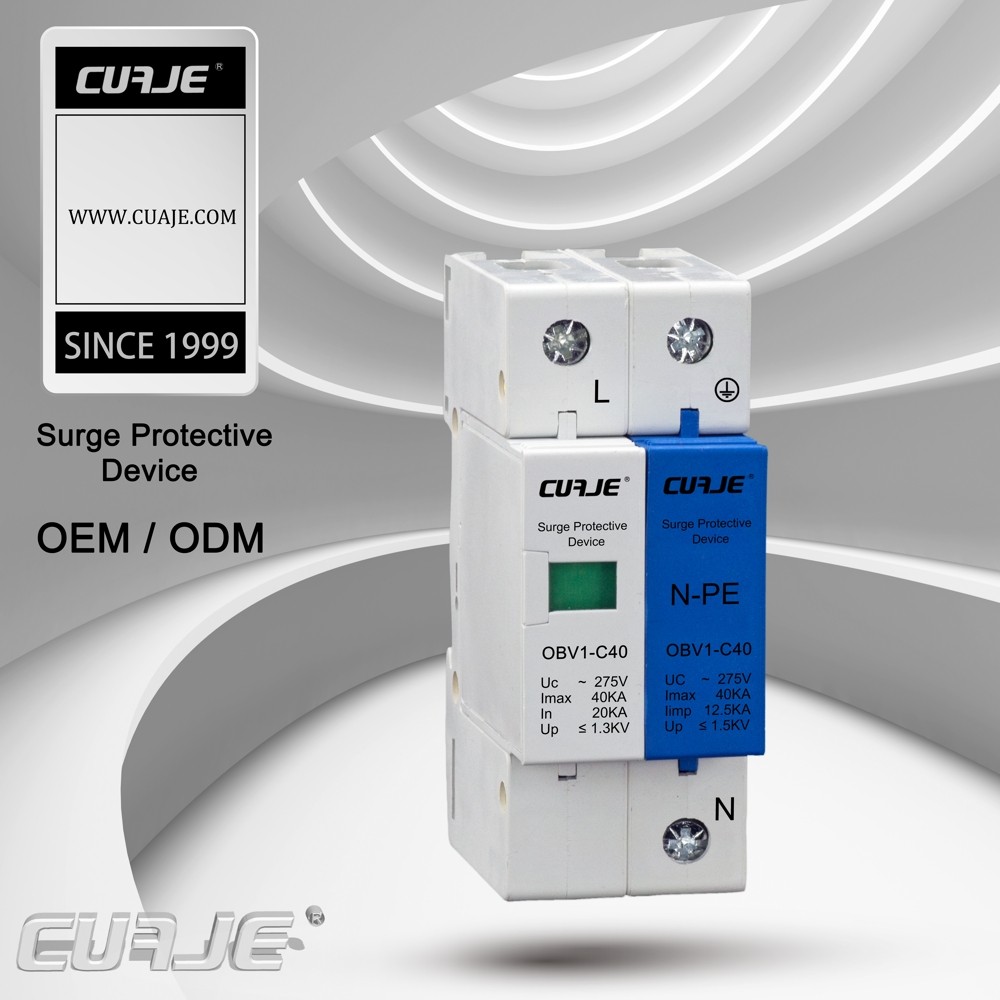

OBV1-C40-385V 3P+N.jpgOBV1-C40-385V 4P.jpgOBV1-C40-275V 1P+N.jpgOBV1-C40-275V 1P.jpg

Packaging & Shipping

packing: standard export carton

shipping: 3 days after receiving the payment

Certifications

EC declaration.jpgCE.jpgISO9001.jpg

Company Information

WenZhou Chuangjie Lightning Protection Electrical Co.,Ltd professional designs and manufactures highly reliable, industrial grade, TVSS (transient voltage surge supressors) surge protectors that guard sensitive equipment from damage. AC Power Line, Data Line, Low Voltage SPDs,lightning rods,Varistors.



Since 1999, CUAJE® continues to be intensely dedicated to one area - the design, development and manufacture of highly reliable surge protection devices (TVSS, SPDs). Products you can depend on when it counts.



Lightning and power surges can seriously damage or disrupt operations in hospitals, financial institutions, military installations and other mission critical activities. CUAJE® Surge Protection's  attention to design and manufacturing offers extraordinary surge current diversion capability, reliably protecting sensitive systems from damaging transients, downtime, and its associated financial and labor costs.
